• Air vents, rear
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Audio system feature, 6-speaker system
• Bluetooth® for phone connectivity to vehicle infotainment system
• Brake lining wear indicator
• Compass, located in instrument cluster
• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Driver Information Center, 4.2" diagonal color display includes driver personalization
• Exterior Temperature Display, located in radio display
• Floor covering, color-keyed carpeting
• Floor mats, rubberized-vinyl front (Deleted when (RIA) All-weather floor liner, LPO is ordered.)
• Floor mats, rubberized-vinyl rear (Deleted when (RIA) All-weather floor liner, LPO is ordered.)
• GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
• Keyless Open and Start
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Power outlet, rear auxiliary, 12-volt
• Remote vehicle starter system
• Seat adjuster, driver 10-way power including lumbar
• Seat adjuster, passenger 4-way manual
• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel audio controls
• Steering wheel, leather-wrapped
• Theft-deterrent system, unauthorized entry
• USB ports, 2 (first row) located on instrument panel
• USB ports, dual, charge-only (2nd row)
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Window, power front, passenger express down
• Windows, power front, drivers express up/down
• Windows, power rear, express down

• Auto-locking rear differential
• Automatic Stop/Start
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Capless fuel fill
• Cargo tie downs (12), fixed, rated at 500 lbs per corner
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Exhaust, single outlet
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup bed
• Recovery hooks, front, frame-mounted, Black
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Transfer case, single speed, electronic Autotrac with push button control (4WD models only)

• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps, LED signature lighting
• Hitch Guidance
• OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Seat Reminder
• Rear Vision Camera
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

NOT EQUIPPED WITH HEATED OR VENTILATED FRONT SEATS

• see dealer for details (Certain vehicles built on or after 11-15-2021 will be forced to include (00V) Not Equipped with Heated or Ventilated Front Seats
• which removes heated and ventilated front seats.)

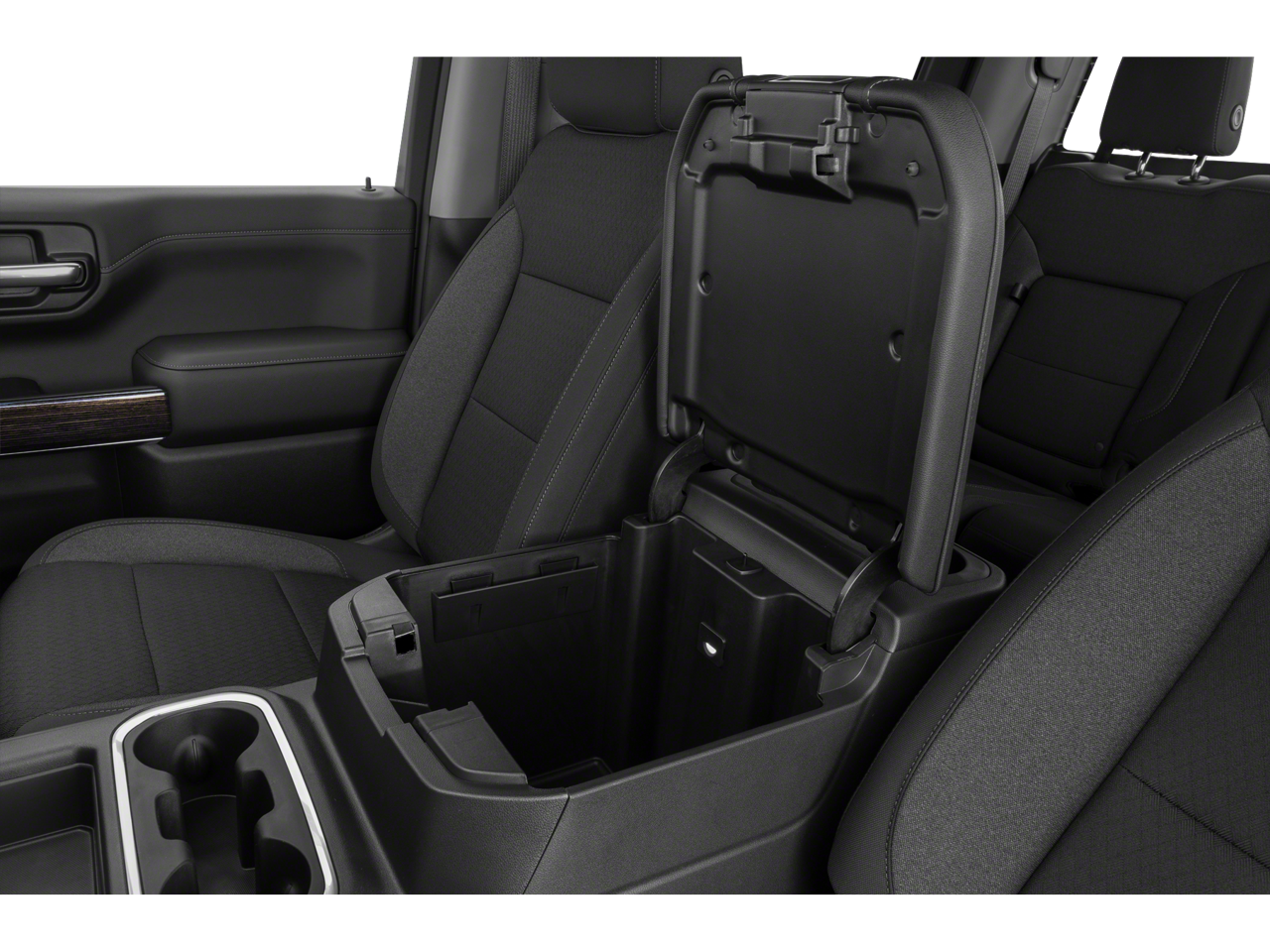

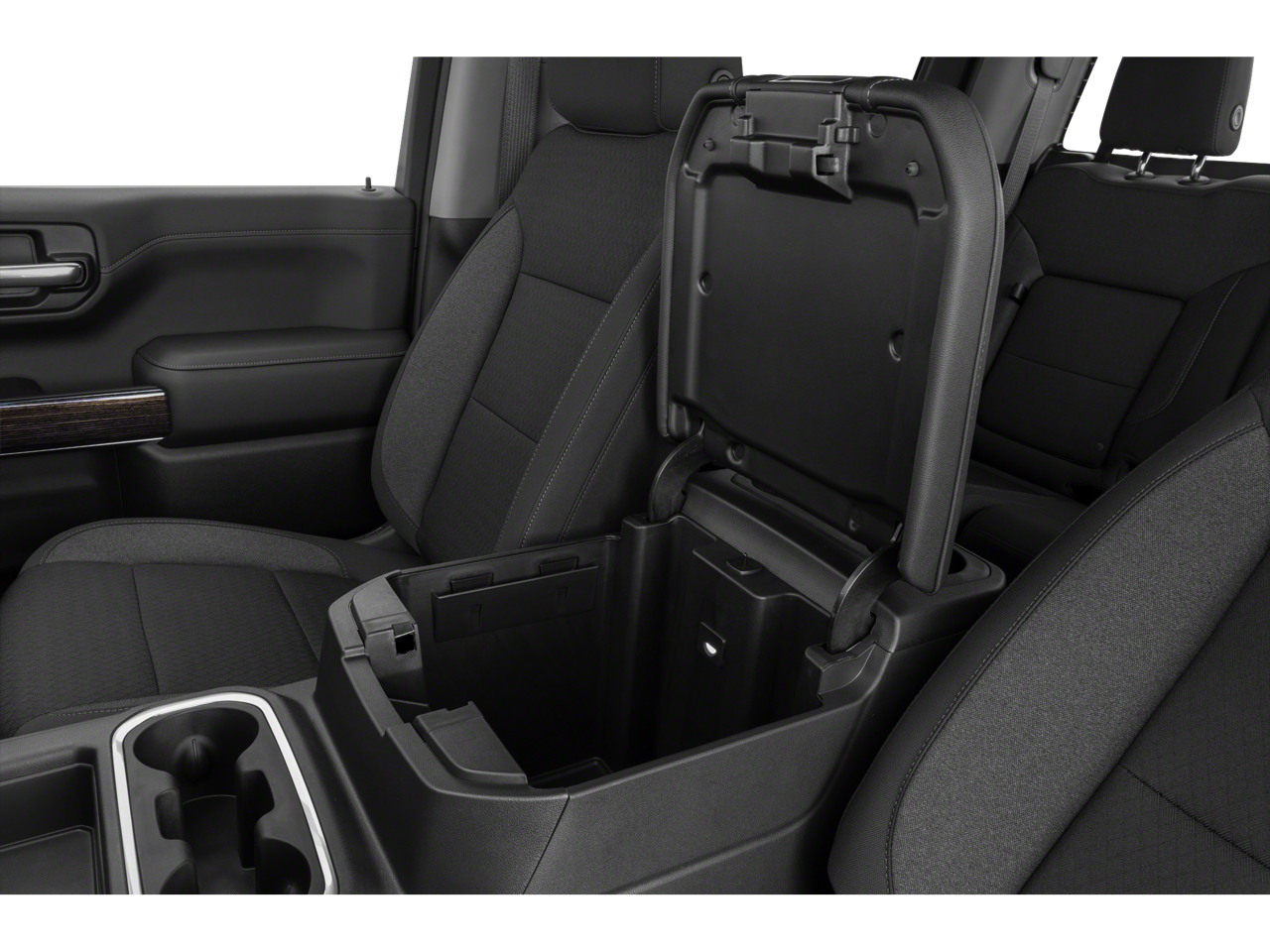

CENTER CONSOLE, FLOOR-MOUNTED

• with cup holders
• cell phone storage
• power cord management
• hanging file folder capability

LPO, ALL-WEATHER FLOOR LINER, 1ST AND 2ND ROWS

• (dealer-installed)

LPO, FRONT AND REAR MOLDED SPLASH GUARDS, BLACK

• (dealer-installed)

TRANSFER CASE, TWO-SPEED, ELECTRONIC AUTOTRAC

• with push button control

TIRES, 275/60R20SL ALL-TERRAIN, BLACKWALL

• (Includes (QAQ) spare tire.)

TRANSMISSION, 10-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking

NOT EQUIPPED WITH HEATED STEERING WHEEL

• see dealer for details (Vehicles built on or after 12-6-2021 will be forced to include (00G) Not Equipped with Heated Steering Wheel
• which removes the heated steering wheel.)

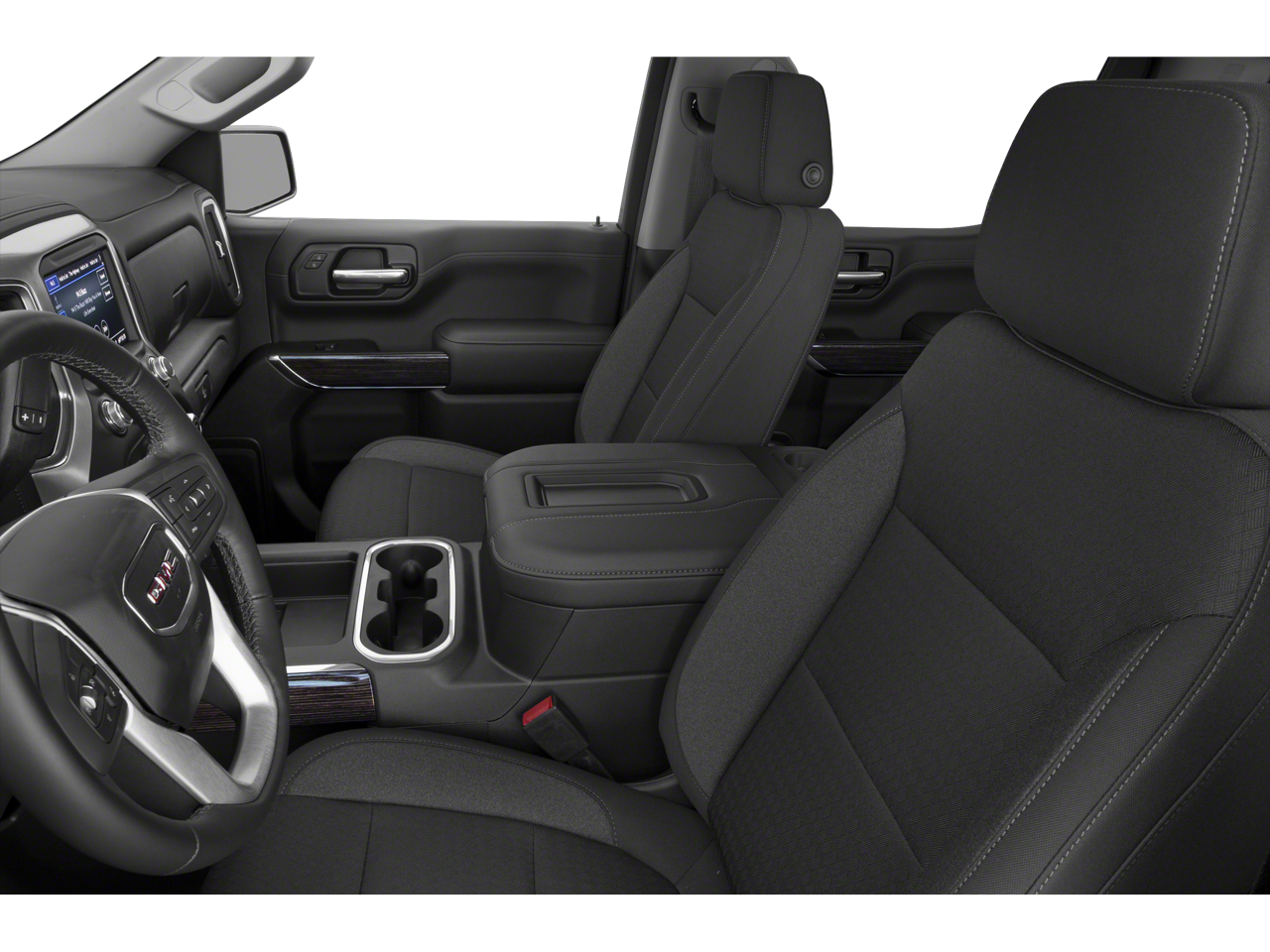

SEATS, FRONT BUCKET

• with center console (Includes (D07) center console.)

LPO, BLACK GMC EMBLEMS

• (dealer-installed)

ELEVATION PREFERRED EQUIPMENT GROUP

• includes standard equipment

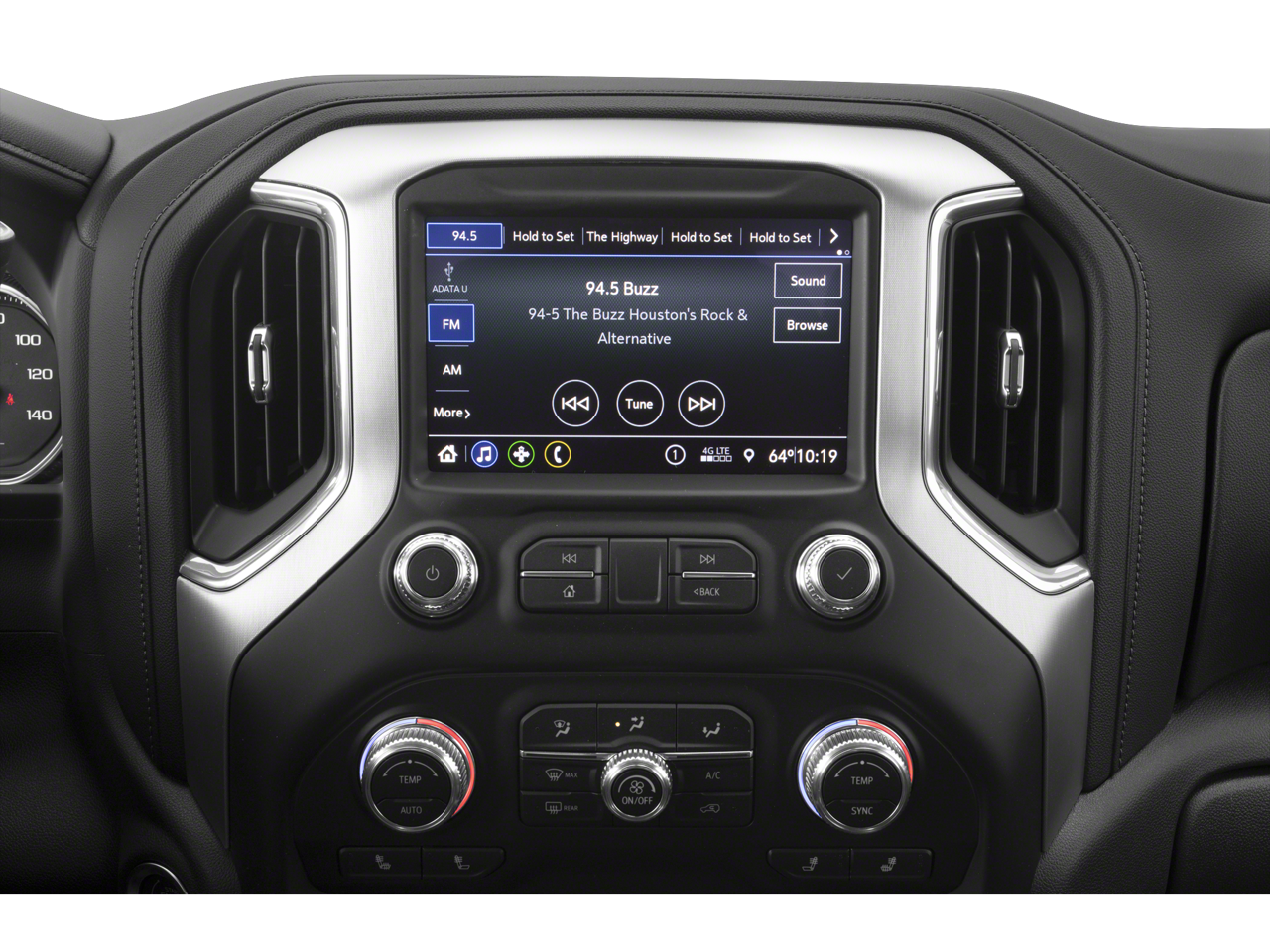

AUDIO SYSTEM, GMC INFOTAINMENT SYSTEM WITH 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)

BED LINER, SPRAY-ON

• Pickup bedliner with GMC logo

• EXHAUST DUAL WITH PREMIUM TIPS
• NOT EQUIPPED WITH HEATED OR VENTILATED FRONT SEATS see dealer for details (Certain vehicles built on or after 11-15-2021 will be forced to include (00V) Not Equipped with Heated or Ventilated Front Seats which removes heated and ventilated front seats.)

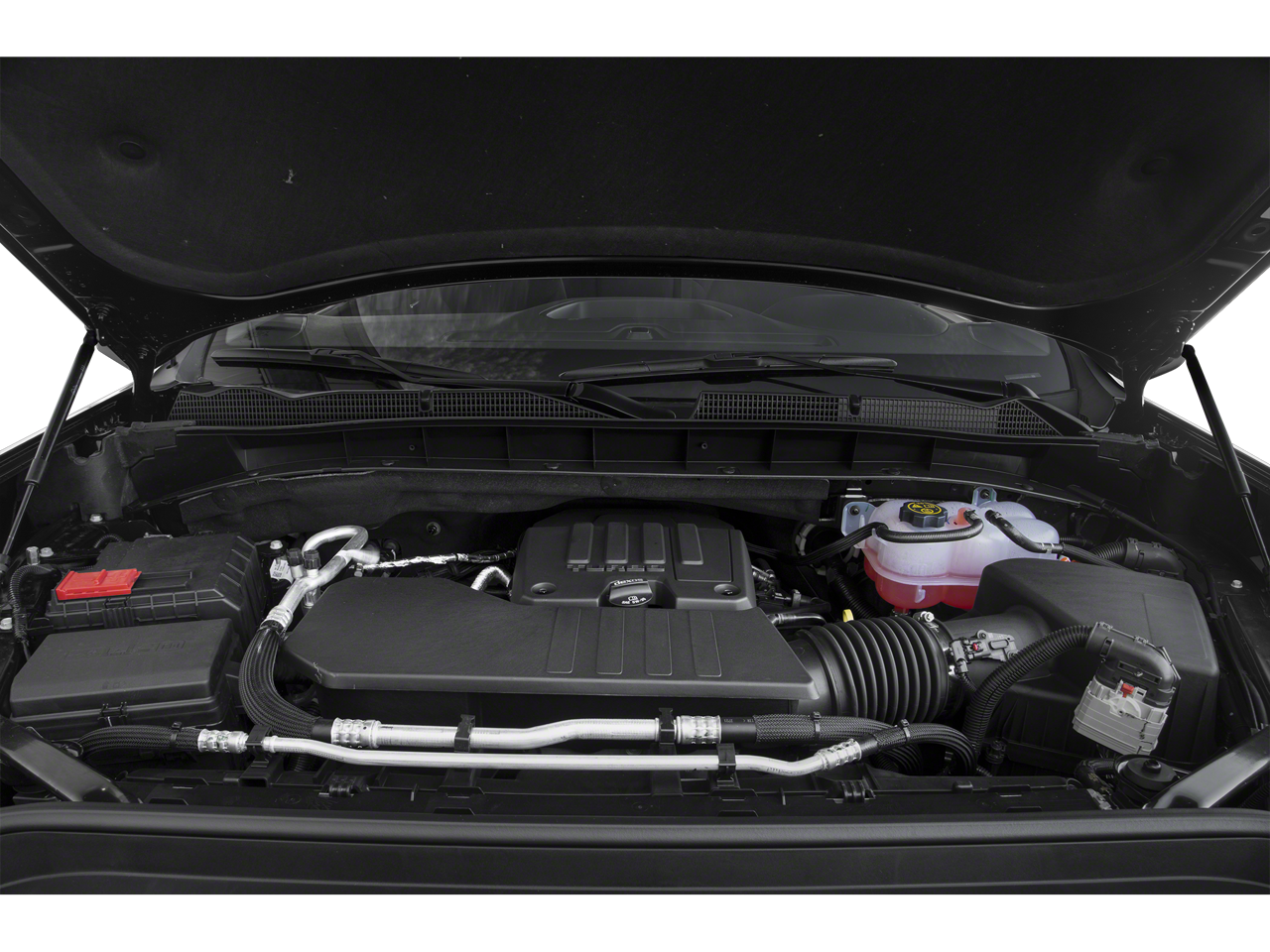

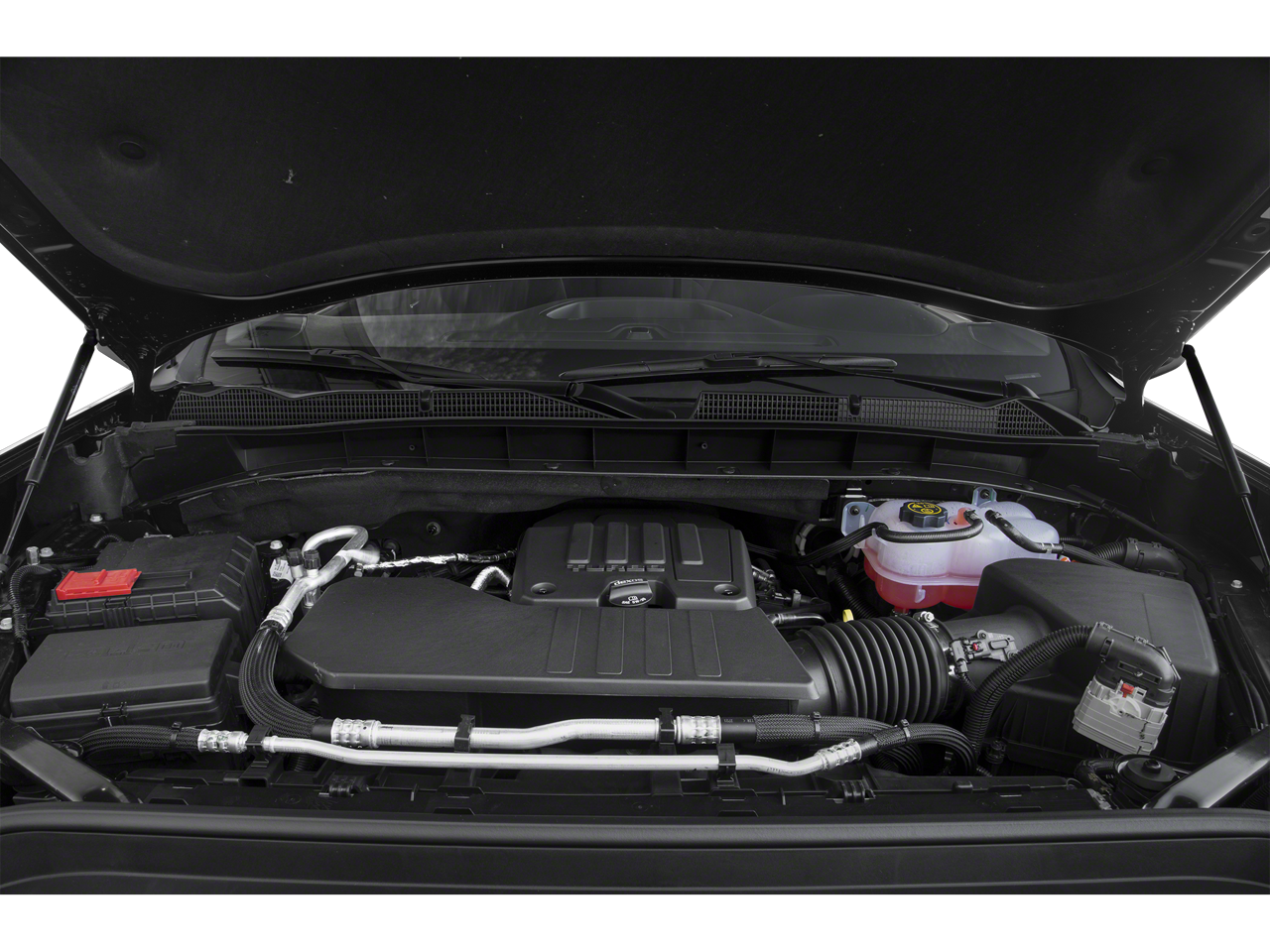

• ENGINE DURAMAX 3.0L TURBO-DIESEL I6 (277 hp [206.6 kW] @ 3750 rpm 460 lb-ft of torque [623.7 N-m] @ 1500 rpm) (Includes (KW5) 220-amp alternator and (K05) engine block heater.)
• HILL DESCENT CONTROL
• AIR FILTER HEAVY-DUTY
• SKID PLATES
• CENTER CONSOLE FLOOR-MOUNTED with cup holders cell phone storage power cord management hanging file folder capability
• ENGINE BLOCK HEATER
• GVWR 7200 LBS. (3266 KG)
• LICENSE PLATE KIT FRONT
• LPO ALL-WEATHER FLOOR LINER 1ST AND 2ND ROWS (dealer-installed)
• SATIN STEEL METALLIC
• LPO FRONT AND REAR MOLDED SPLASH GUARDS BLACK (dealer-installed)
• X31 OFF-ROAD AND PROTECTION PACKAGE includes (X31) Off-Road Package (CGN) spray-on bedliner and (RIA) All-weather floor liners LPO
• REAR AXLE 3.23 RATIO
• X31 OFF-ROAD PACKAGE includes Off-Road suspension (JHD) Hill Descent Control (NZZ) skid plates (K47) heavy-duty air filter and X31 hard badge Includes (QAE) 275/60R20SL all-terrain blackwall tires and (NQH) 2-speed transfer case. Includes (N10) dual exhaust.
• LPO BLACK TUBULAR ASSIST STEPS 6" RECTANGULAR (dealer-installed)
• TRANSFER CASE TWO-SPEED ELECTRONIC AUTOTRAC with push button control
• TIRES 275/60R20SL ALL-TERRAIN BLACKWALL (Includes (QAQ) spare tire.)
• TRANSMISSION 10-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking
• NOT EQUIPPED WITH HEATED STEERING WHEEL see dealer for details (Vehicles built on or after 12-6-2021 will be forced to include (00G) Not Equipped with Heated Steering Wheel which removes the heated steering wheel.)
• SEATS FRONT BUCKET with center console (Includes (D07) center console.)
• JET BLACK CLOTH SEAT TRIM
• LPO BLACK GMC EMBLEMS (dealer-installed)
• ELEVATION PREFERRED EQUIPMENT GROUP includes standard equipment
• AUDIO SYSTEM GMC INFOTAINMENT SYSTEM WITH 8" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)
• BED LINER SPRAY-ON Pickup bedliner with GMC logo
• Tow Hitch
• Climate Control
• A/C
• Power Driver Seat
• Adjustable Steering Wheel
• Driver Adjustable Lumbar
• Locking/Limited Slip Differential
• Turbocharged
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Daytime Running Lights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Integrated Tailgate Step
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Steering Wheel Audio Controls
• WiFi Hotspot
• Power Driver Seat
• Driver Adjustable Lumbar
• Floor Mats
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Power Windows
• Power Windows
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Keyless Start
• Remote Engine Start
• Cruise Control
• Security System
• MP3 Capability
• Auxiliary Audio Input
• Power Outlet
• Power Outlet
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 22.4
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 8.09
• Ground Clearance, Rear (in): 8.09
• Height, Overall (in): 75.51
• Length, Overall (in): 231.72
• Wheelbase (in): 147.43
• Width, Max w/o mirrors (in): 81.24
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Interior Dimensions
• Front Head Room (in): 43.03
• Front Hip Room (in): 61.18
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 5
• Second Head Room (in): 40.12
• Second Hip Room (in): 60.24
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Mileage
• EPA Fuel Economy Est - City (MPG): 22
• EPA Fuel Economy Est - Hwy (MPG): 26
• Fuel Economy Est-Combined (MPG): 24
• Steering
• Steering Type: Electric Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 46.9
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup

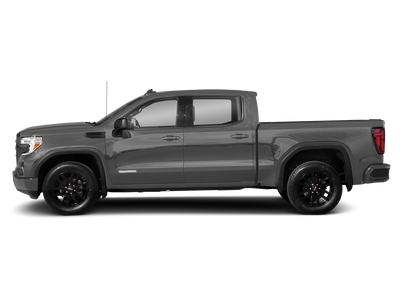

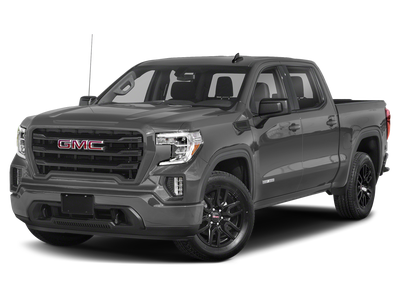

• Vehicle Name: GMC Sierra 1500 Limited
• Suspension
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.23
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 50
• Shock Absorber Diameter - Rear (mm): 50
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Stabilizer Bar Diameter - Front (in): 1.30
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Tires
• Front Tire Order Code: QAE
• Front Tire Size: 275/60R20SL
• Rear Tire Order Code: QAE
• Rear Tire Size: 275/60R20SL
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: QAQ
• Spare Tire Size: 255/80R17SL
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1675
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6700
• Maximum Trailering Capacity (lbs): 10800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 880
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8800
• Weight Information
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1977
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Gross Combined Wt Rating (lbs): 15000
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x
